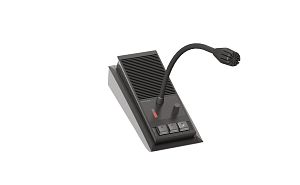

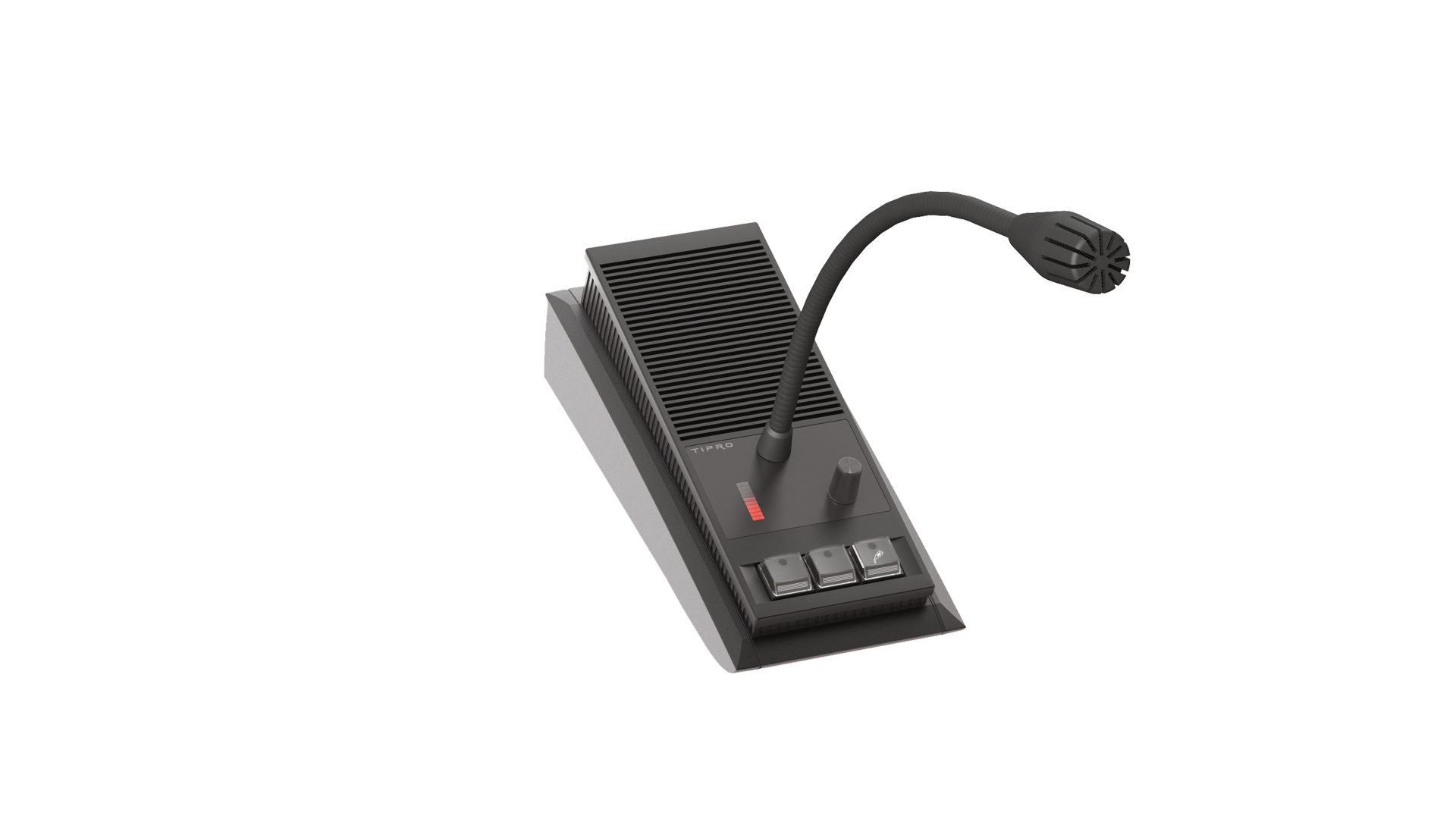

Intercom – USB Audio Device for Hands-free communication

A single, large speaker which can produce a higher volume and lower frequency tones.

  • Compact design
  • A single, large speaker which can produce a higher volume and lower frequency tones than the current speakerbox
  • It can be used on its own, as USB audio device or in combination with a Handset.
  • Besides this, it can be used in combination with the new BF03 as a very compact console solution.
  • Combination of a USB audio device and an HID keyboard
  • Plug&play operation with generic drivers
  • Goose-neck microphone
  • Separate alert/alarm audio output
  • Connection for an external analogue handset
  • Incremental encoder (endless potentiometer) for volume control
  • Three-colour bar-graph display as VU meter and/or volume indicator
  • Three programmable keys with LED indicators
  • Analogue front-end designed to meet wide-band IP telephony standards
  • Programmable signal processing includes ambient noise suppression (noise gating), signal compression and limiting
  • Optional echo-canceller with a digital signal processor
  • Dispatcher terminals
  • Banking & trading consoles
  • Multifunctional control panels
  • Digital telephony (e.g. Voice over IP) devices

Intercom

  • 10 W Loudspeaker
  • Unidirectional goose-neck microphone
  • USB audio device
  • HID telephony interface supported
  • Optional echo-canceller with a digital signal processor

Programmable Keys – User Configurable

  • PTT key + 2 freely programmable keys

Modular & Programmable

  • Can be combined with other modules from FREE family, e.g. Handset, keyboard
  • Keys can be programmed as keyboard emulation, HID Telephony events
  • Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
  • All settings stored in hardware, configuration software: ChangeMe
  • Hardware Echo Cancellation
    For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.

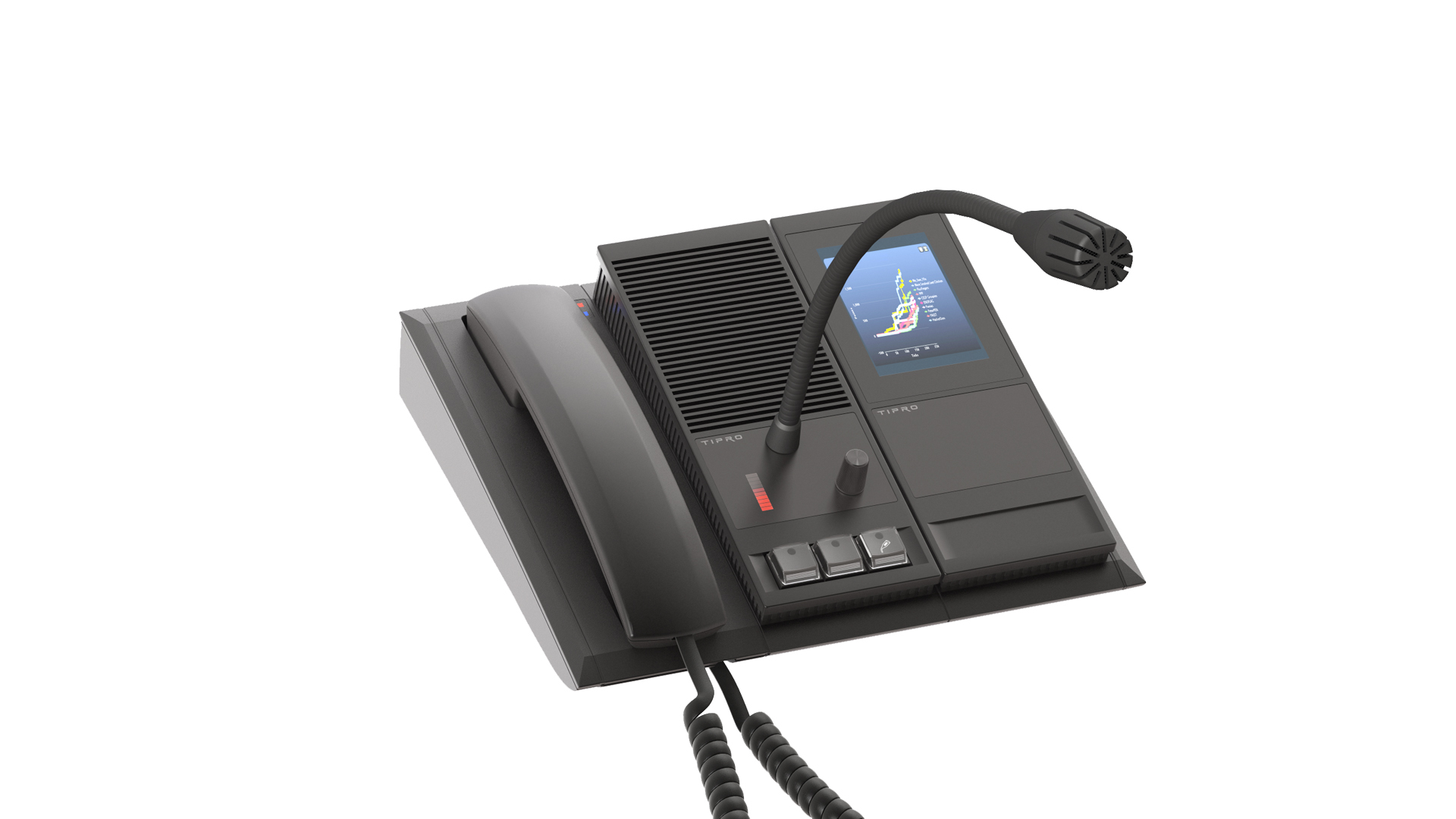

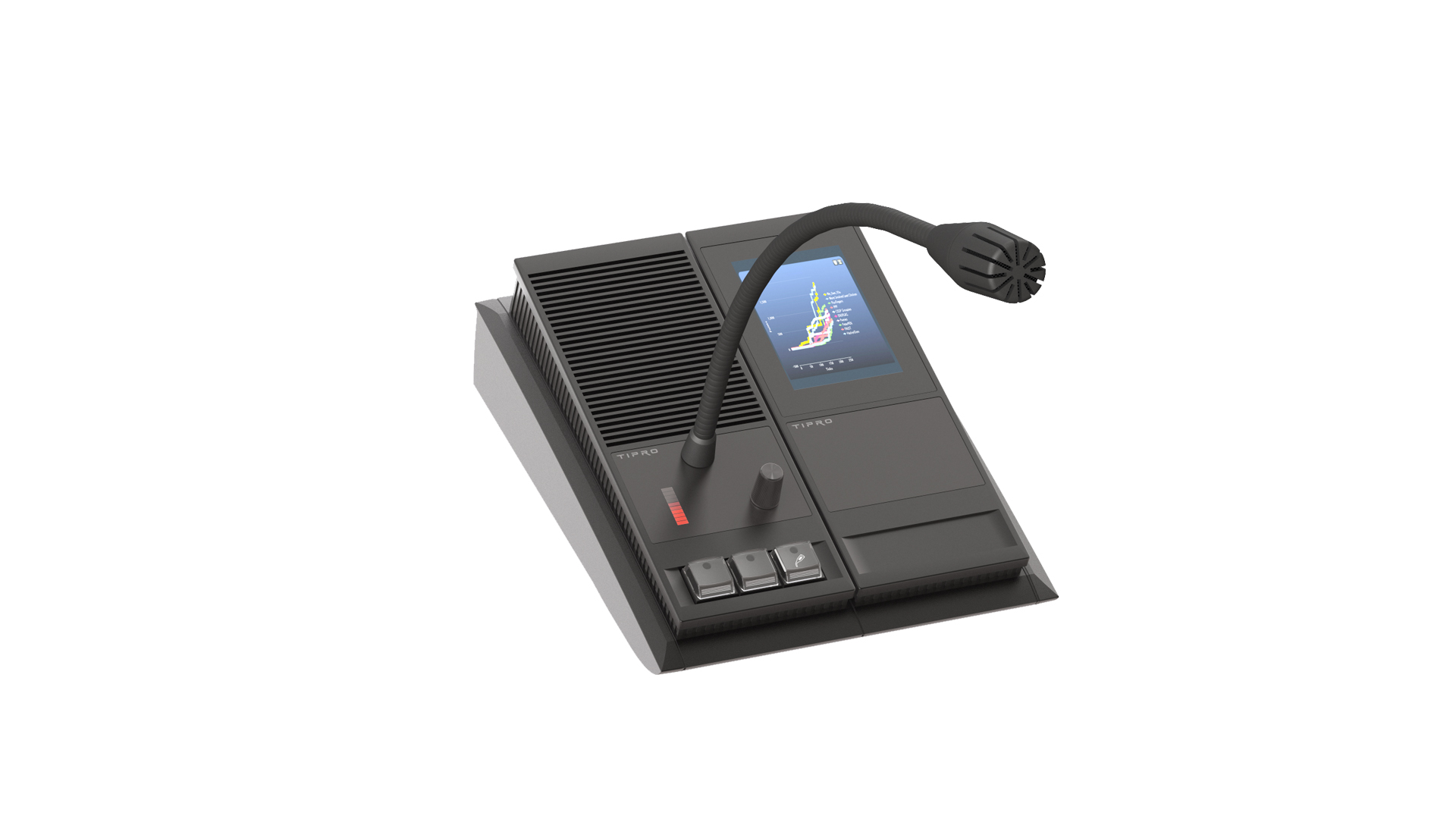

  • BeFREE 03
    In combination with the BF03, a compact and low-cost dispatching solution can be built.

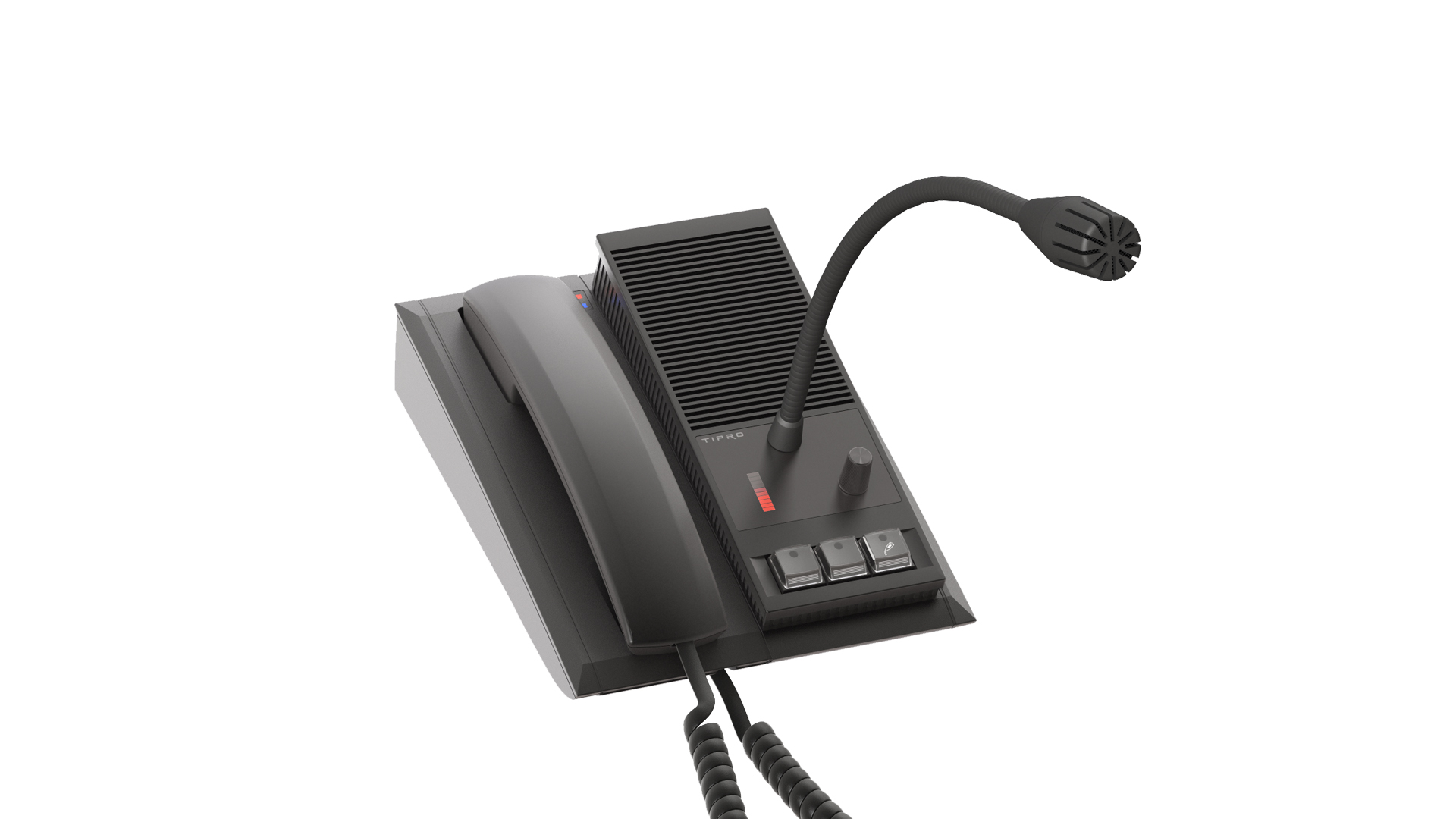

  • Handset
    Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:

    • USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
    • Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.

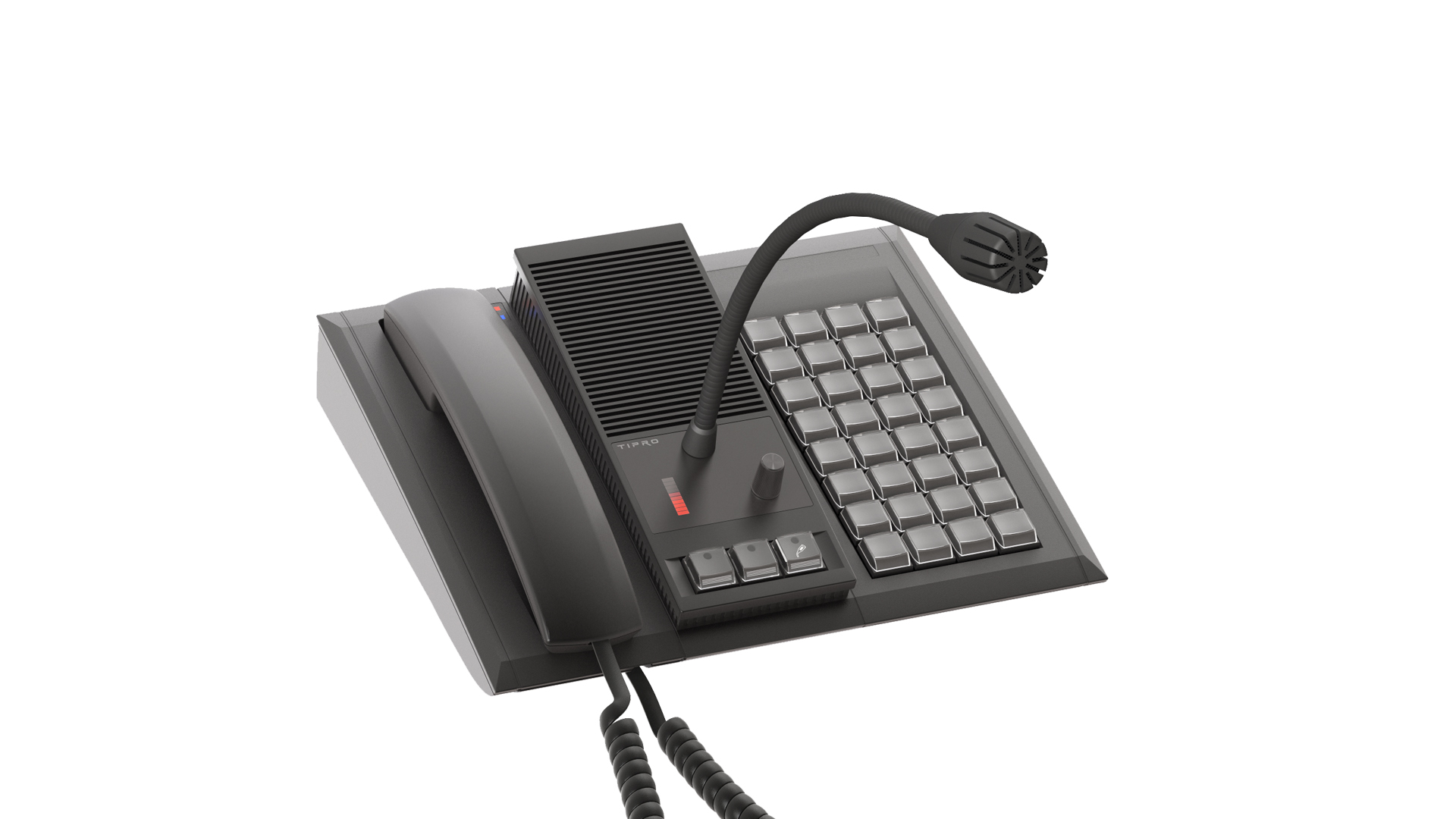

  • Keyboard
    If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE.
