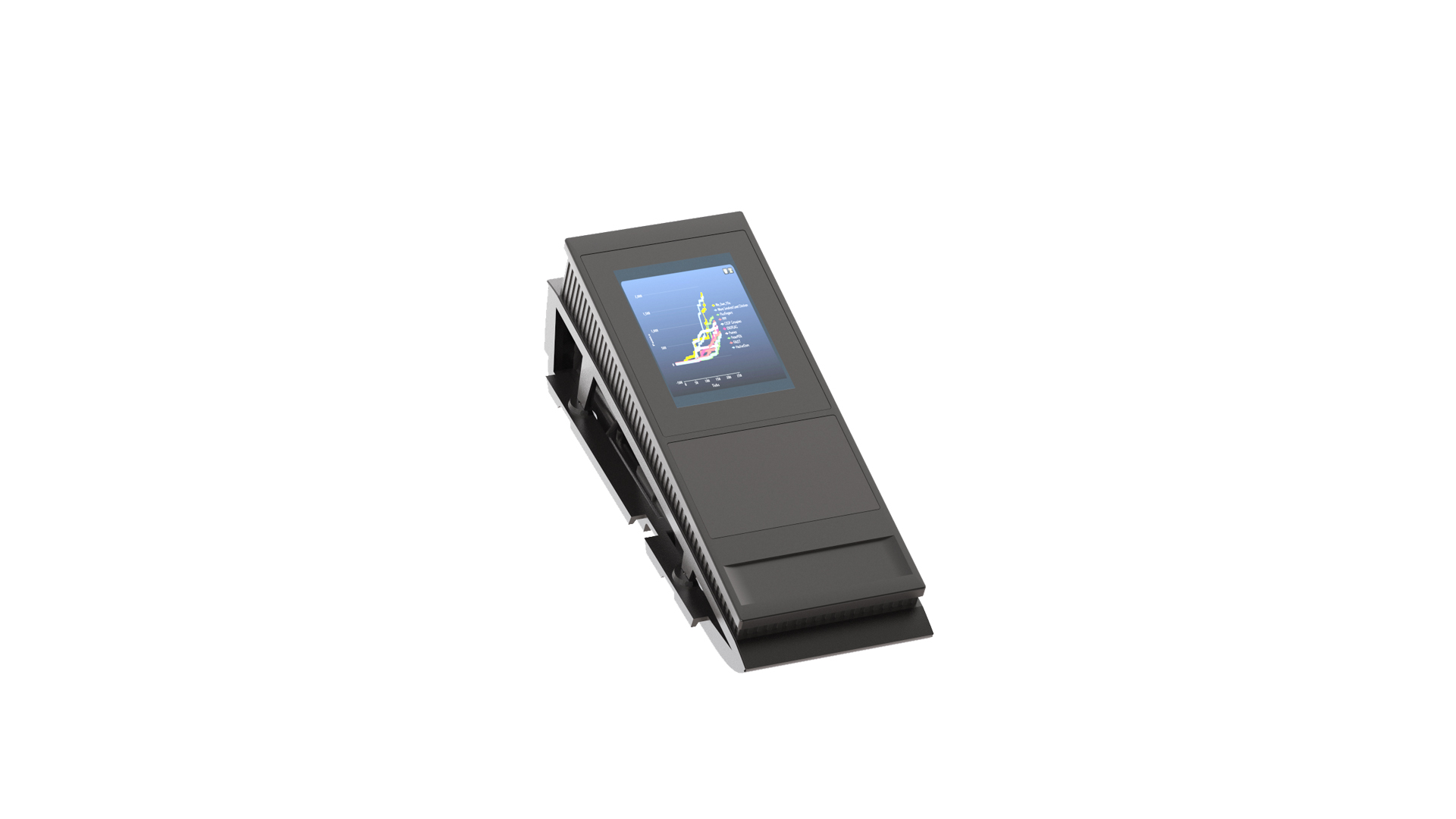

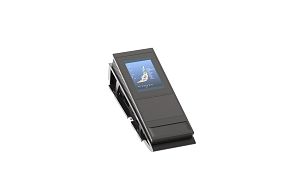

BeFREE 03 (BF03) Touchcomputer

The BeFREE 03 is the smallest BeFREE module in Tipro’s FREE modular range.

It can be combined with Tipro’s voice communication modules to make a small dispatcting console.

  • Fanless ARM based computer
  • 3.5” TFT LCD in portrait orientation with half-size VGA resolution (320 x 480)
  • Projected Capacitive Touch sensor
  • Modular – combinable with other modules of the FREE family into multifunctional terminals
  • Low-profile horizontal design
  • Silent and reliable – no moving parts, industrial grade components
  • Cable management – hidden and secured, but accessible
  • Operator/Dispatcher terminals/consoles for command and control centres in:
    • Transport and traffic control (railways, air traffic …)
    • Public safety (police, fire brigades, ambulance …)
    • Utilities (electricity, gas …)
    • Building/facility management systems (airports, banks, industrial plants …)

Computer

  • Processor: 800 MHz ARM Cortex A7
  • System Memory: 1 GB RAM

Mass Storage

  • Type: internal eMMC flash
  • Capacity: 4GB
  • External mass storage: µSDCard slot

Display

  • Type: TFT LCD
  • Size: 3.5” diagonal
  • Native resolution: 320 x 480 (portrait)

Touchscreen

  • Projected Capacitive (PCAP) touchscreen

Connectivity

  • USB: 2 x USB 2.0 ports
  • Ethernet : 1 x 10/100 Mbit
  • 12V DC input
  • UART (serial port)

Operating system

  • Linux pre-installed

Modular

  • Can be combined with other modules from FREE family, e.g.
    • Intercom,
    • Handset,
    • keyboard

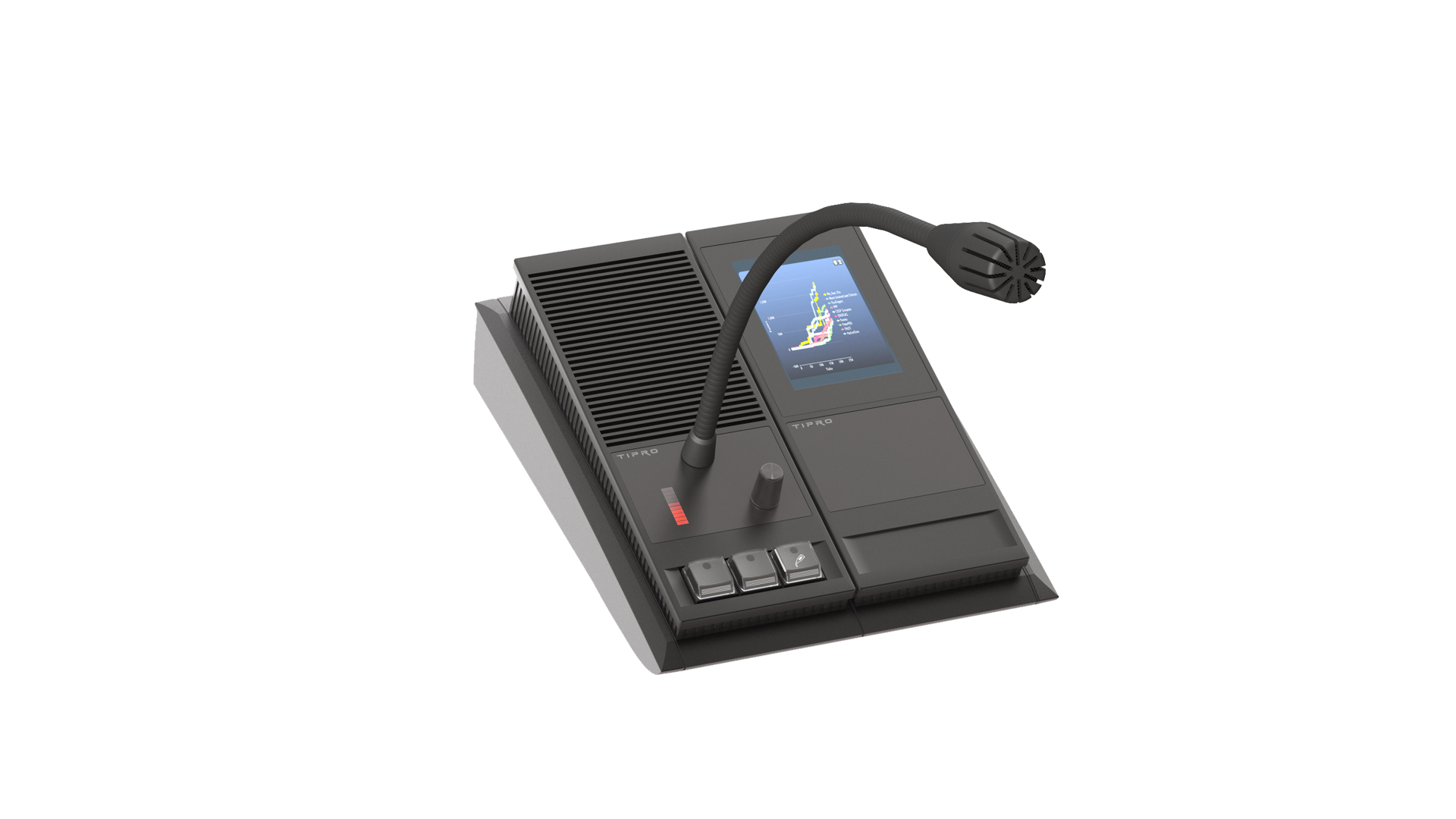

  • Intercom
    A logical combination of Intercom and BeFREE03 makes a very compact voice communication module with ethernet connection.

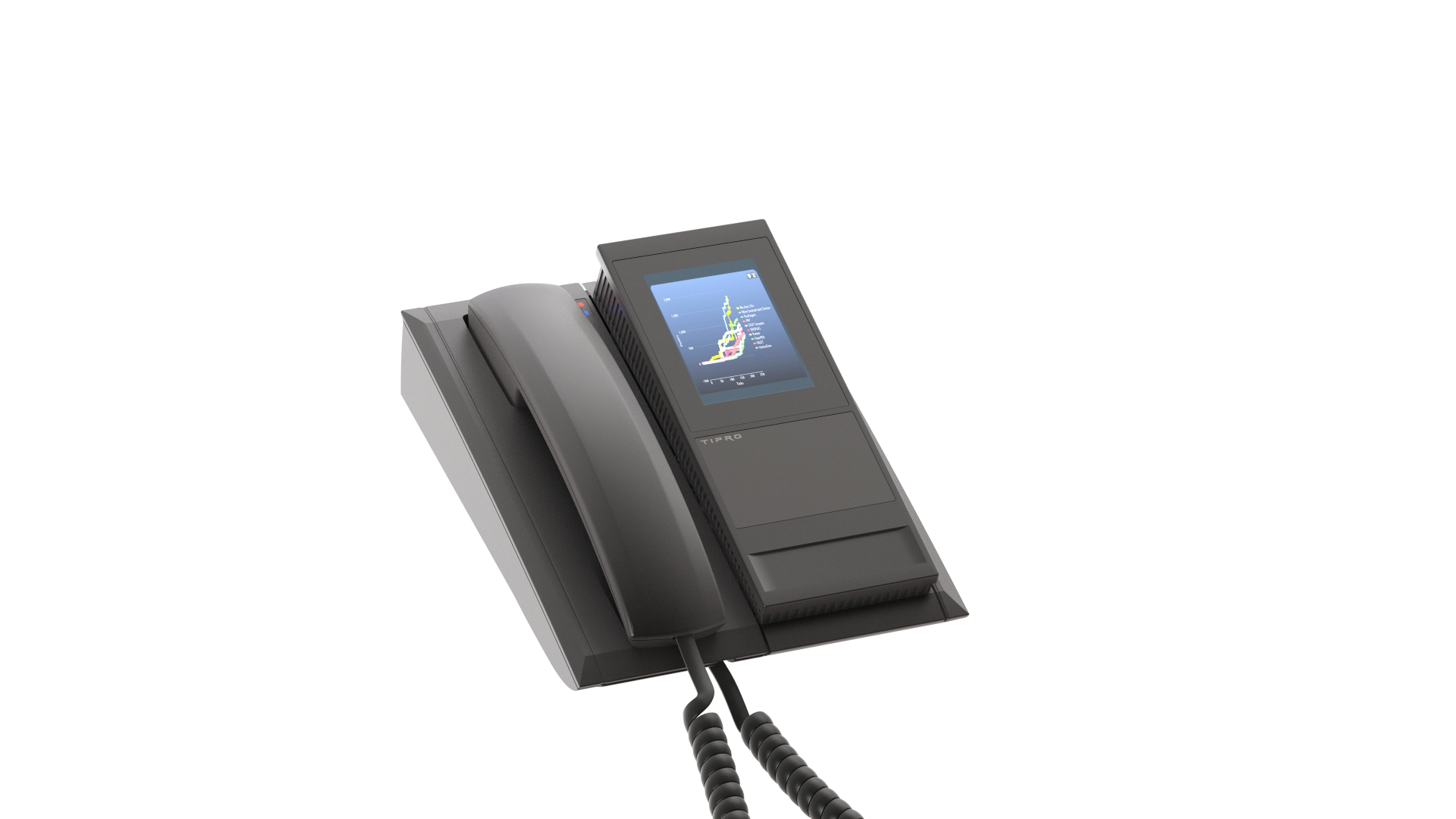

  • Handset
    Because of the modular design, the BeFREE can be combined with one or two USB Handsets on the left or right side.

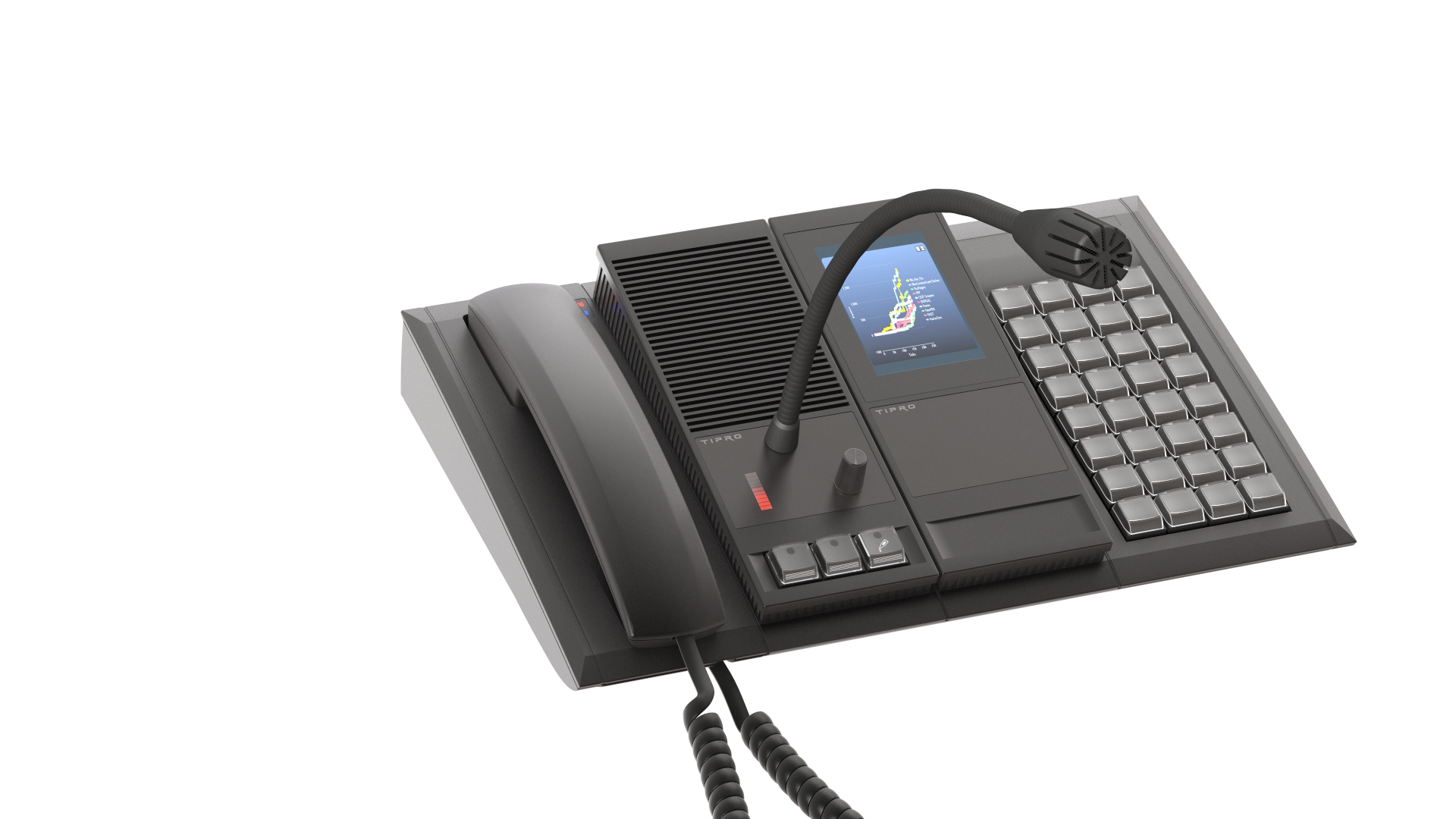

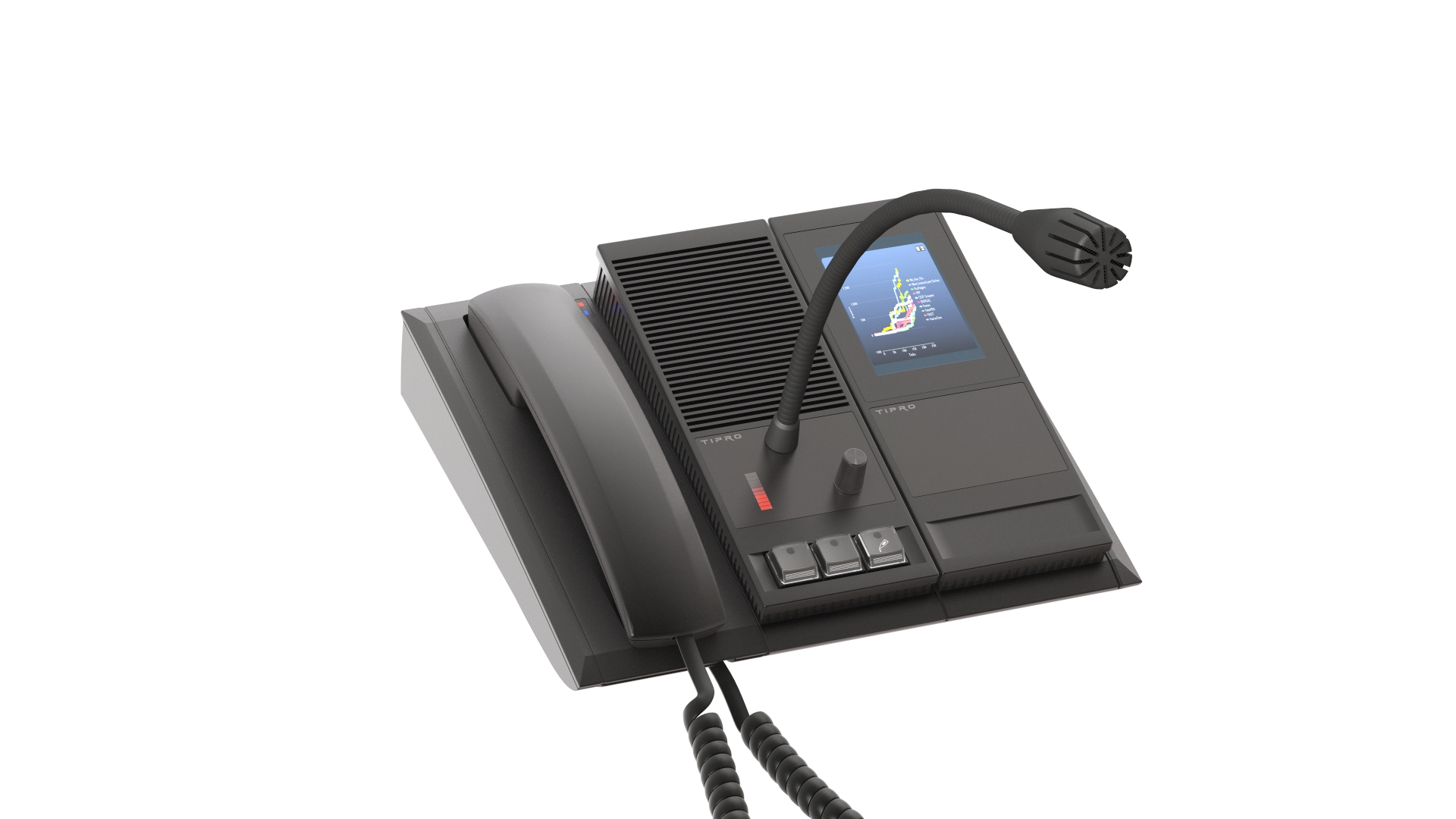

  • Intercom and Handset. The handset can be either:
    • USB; Besides the Handsefree audio, this offers an extra, independent, voice channel
    • Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
  • Keyboard
    Shortcut keys are needed, a programmable keyboard can be added to the BeFREE.
  • POE
    Power over ethernet is optional. In this case just one cable (ethernet) is needed.
