BeFREE 10 (BF10) Touchcomputer with Integrated Intercom

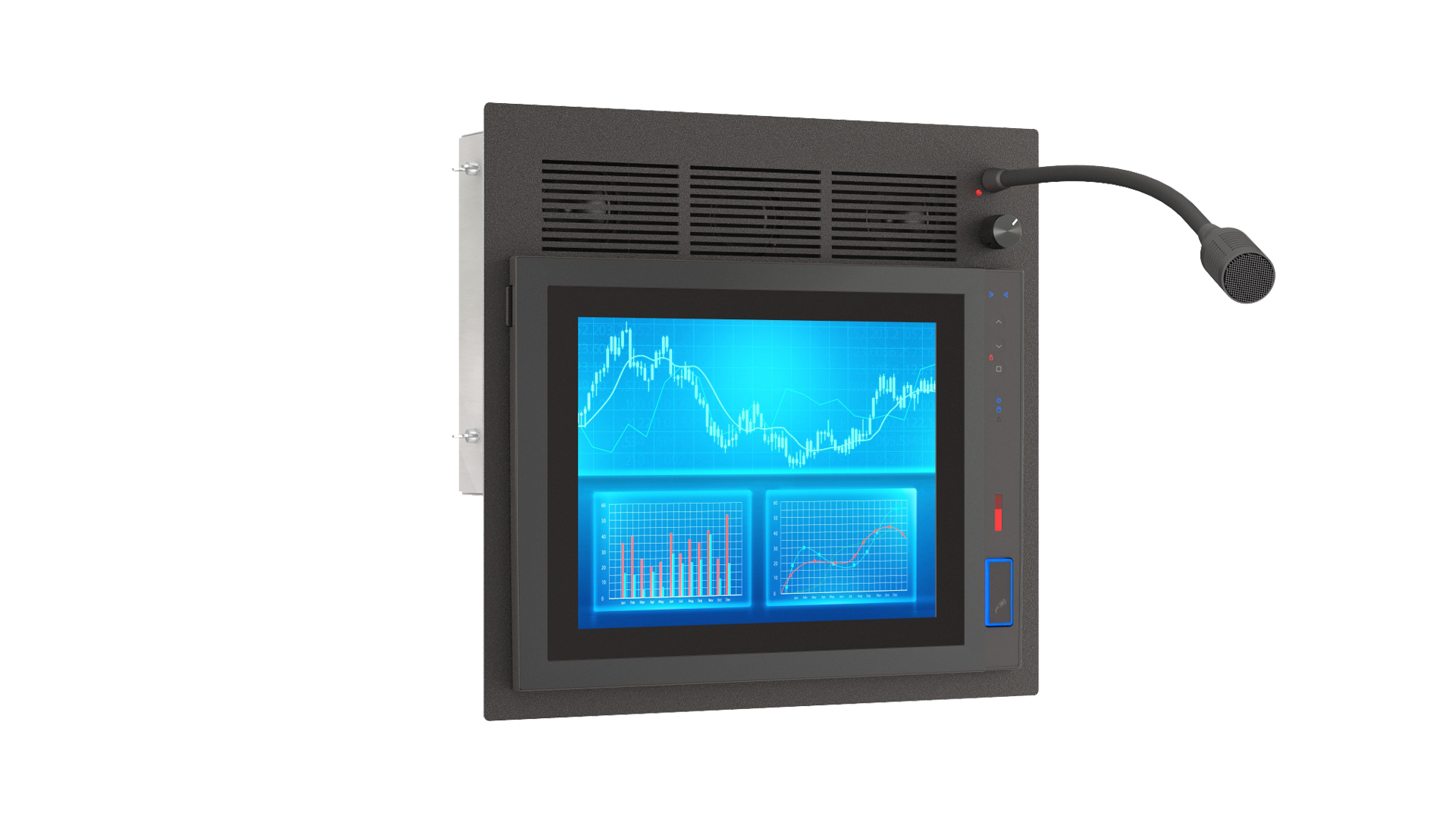

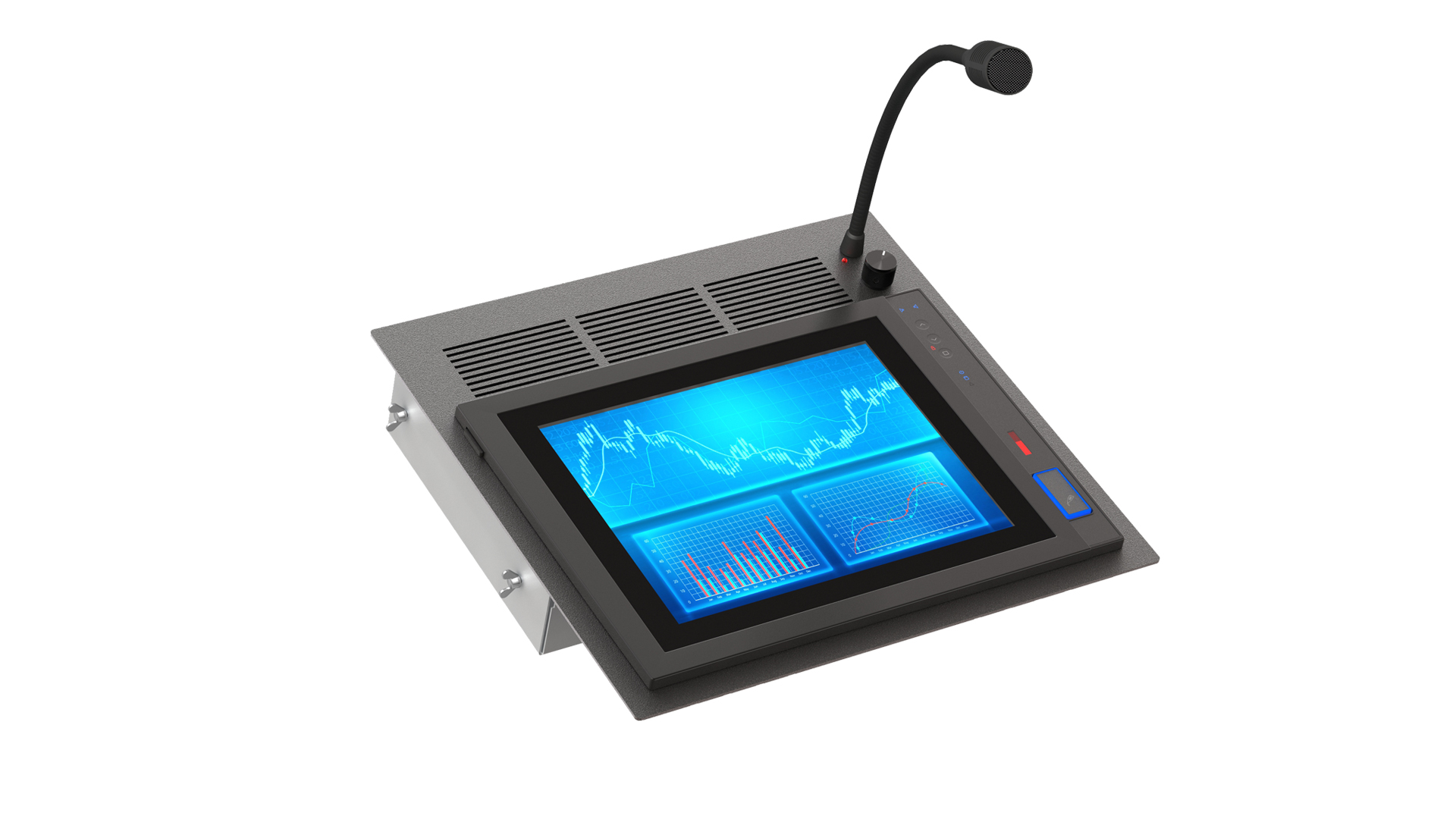

10.4″ Panel Mount Touchcomputer with Integrated Intercom

Panel mount version of BeFREE 10 (BF 10) is a member of the modular FREE (also referred to as FREE/FREE+/BeFREE) product family, integrating a 10.4” touchmonitor, a computer and an intercom device. It is compatible and combinable with Handset. The touchmonitor comprises a high resolution (XGA), ultra-wide viewing angle TFT LCD and 5-wire resistive touchscreen. The computer is based on a main-board with Intel quad-core Celeron processor (J6420) and a solid state disk. Thanks to low-power components and the corresponding electronic and thermal design the BeFREE 10 is completely silent and without moving parts.

  • Panel mount version of Tipro’s BeFREE10
  • Sturdy metal frame
  • 10.4″ TFT LCD with XGA resolution (1024 x 768)
  • Modular – can be combined with Handset
  • Silent and reliable – no moving parts, industrial grade components, Ethernet redundancy, redundant internal audio and controller interfaces
  • Extensive connectivity (LAN, USB, COM, external display, digital inputs, analog audio)
  • Built-in Tipro Controller
  • Stereo loudspeakers (10W each) with volume control encoder
  • Additional low-frequency loudspeaker (1 x 3W) with programmable equalizer
  • Goose-neck microphone with illuminated PTT key
  • Three-colour bar-graph display
  • Three mechanical keys for brightness control, volume adjustments and other functions
  • Several LED indicators (power, SSD, microphone, touchscreen …)
  • Operator/Dispatcher terminals/consoles for command and control centres in:
    • Transport and traffic control (railways, air traffic …)
    • Public safety (police, fire brigades, ambulance …)
    • Utilities (electricity, gas …)
    • Building/facility management systems (airports, banks, industrial plants …)
  • Trading and banking consoles
  • Multifunctional control panels

Computer

  • Intel Quad-Core 64-bit J6420 processor (SoC) with 8 GB RAM (optional 16 GB RAM)
  • Solid-State Disk 256 GB
  • Operating System: Windows, Linux supported. Android possible-limited support. Supplied without operating system.

Display

  • Industrial grade 10.4” high-brightness TFT LCD with XGA (1024 x 768) resolution

Touchscreen

  • ELO 5-wire resistive touchscreen or
  • Projected Capacitive (PCAP) touchscreen

Intercom

  • Stereo loudspeakers (10W each) with two separate volume control encoders
  • Goose-neck microphone with illuminated PTT key
  • USB audio device
  • HID telephony interface supported
  • Connected to the internal sound card (analogue interface)
  • Optional echo-canceller with a digital signal processor

Modular & Programmable

  • Can be combined with Handset
  • Keys can be programmed as keyboard emulation, HID Telephony events
  • Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
  • All settings stored in hardware, configuration software: ChangeMe

Dimensions:

  • 332 x 316 mm [WxH]
  • Cut-out: 310 x 293 mm [WxH]
  • Depth (from surface): 94 mm
  • Hardware Echo Cancellation
    For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.
  • Handset

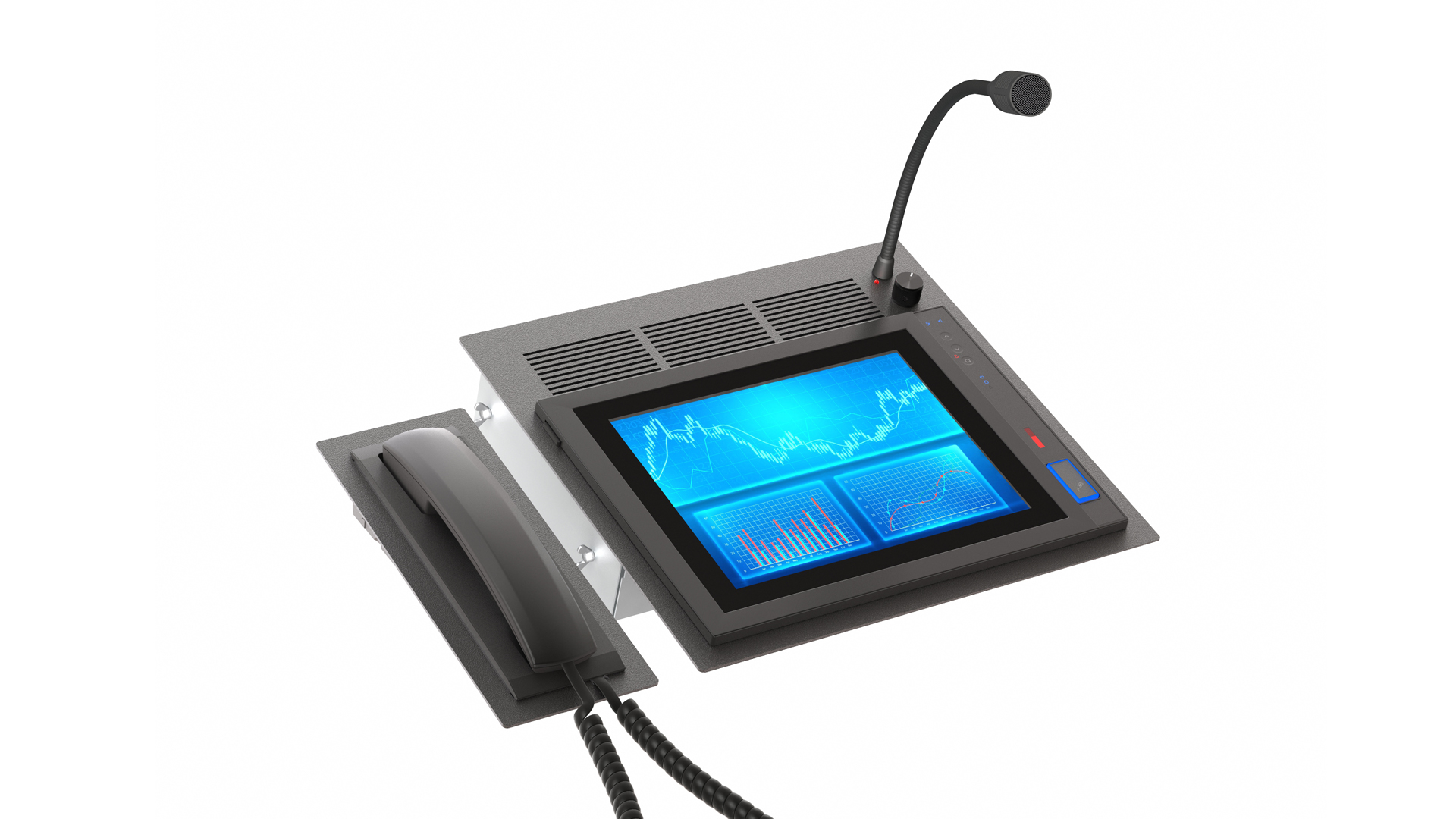

    Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
    – USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
    – Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
