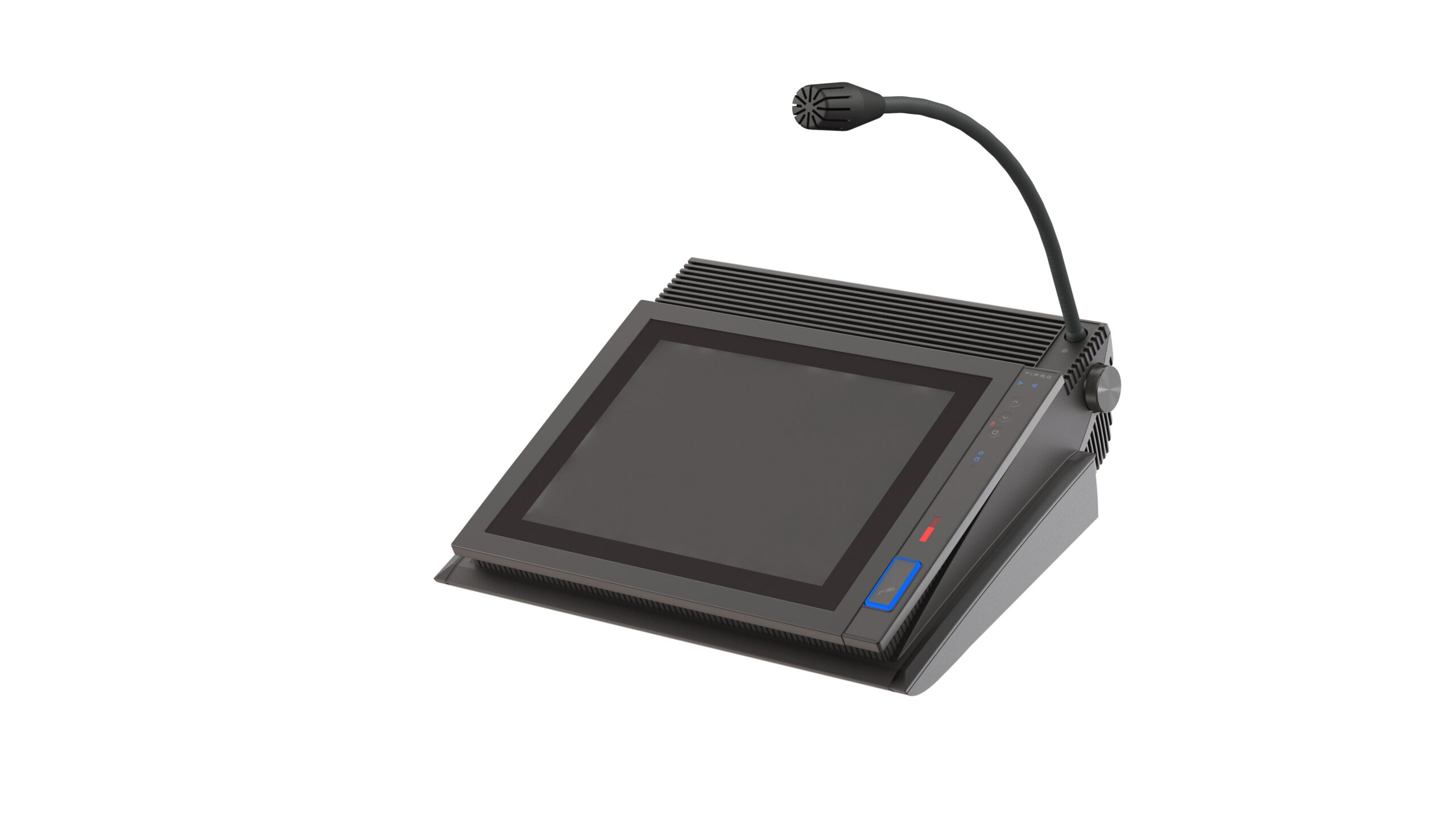

FREE+ 10 (FP10) - 10.4'' Touchmonitor with Integrated Intercom

Voice Communication Dispatching Device

The FREE+ 10 (FP10) is a member of the modular FREE (also referred to as FREE/FREE+/BeFREE) product family, integrating a 10.4” touchmonitor and an intercom device. It can be used with any external computer. It is compatible and combinable with all existing FREE modules. The touchmonitor comprises a high resolution (XGA), ultra-wide viewing angle TFT LCD and projected capacitive, anti-glare touchscreen.

See features and more

Features

  • Space-saving integration of a touchscreen, microphone and speakers
  • 10.4” TFT LCD with XGA resolution (1024 x 768)
  • Can be used with any external computer
  • Modular – combinable with other modules of the FREE family into multifunctional terminals
  • Low-profile horizontal design
  • DisplayPort and HDMI display interface
  • USB input for touch, audio and Tipro controller
  • Cable management – hidden and secured, but accessible
  • Built-in Tipro Controller  with HID Keyboard & HID Telephony Interface. HID Gamepad optional.
  • Stereo loudspeakers (5W each) with volume control encoder
  • Goose-neck microphone with illuminated PTT key
  • Three-colour bar-graph display
  • Three mechanical keys for brightness control, volume adjustments and other functions
  • Several LED indicators (power, microphone, touchscreen …)
  • Optional Inclination Mechanism (VESA 75)

Applications

  • Operator/Dispatcher terminals/consoles for command and control centres in:
    • Transport and traffic control (railways, air traffic …)
    • Public safety (police, fire brigades, ambulance …)
    • Utilities (electricity, gas …)
    • Building/facility management systems (airports, banks, industrial plants …)
  • Trading and banking consoles
  • Multifunctional control panels

Technical Details

Display

  • Industrial grade 10.4” high-brightness TFT LCD with XGA (1024 x 768) resolution

Touchscreen

  • Projected Capacitive (PCAP) touchscreen, Anti-Glare

Intercom

  • Stereo loudspeakers (5W each) with two separate volume control encoders
  • Goose-neck microphone with illuminated PTT key
  • USB audio device
  • Connected to the internal sound card (analogue interface)
  • Connection for analogue switching Handset
  • Optional echo-canceller with a digital signal processor

Modular & Programmable

  • Can be combined with other modules from FREE family, e.g. Handset, keyboard
  • Keys can be programmed as keyboard emulation, HID Telephony events
  • Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
  • All settings stored in hardware, configuration software: ChangeMe

Options

  • Hardware Echo Cancellation
    For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.

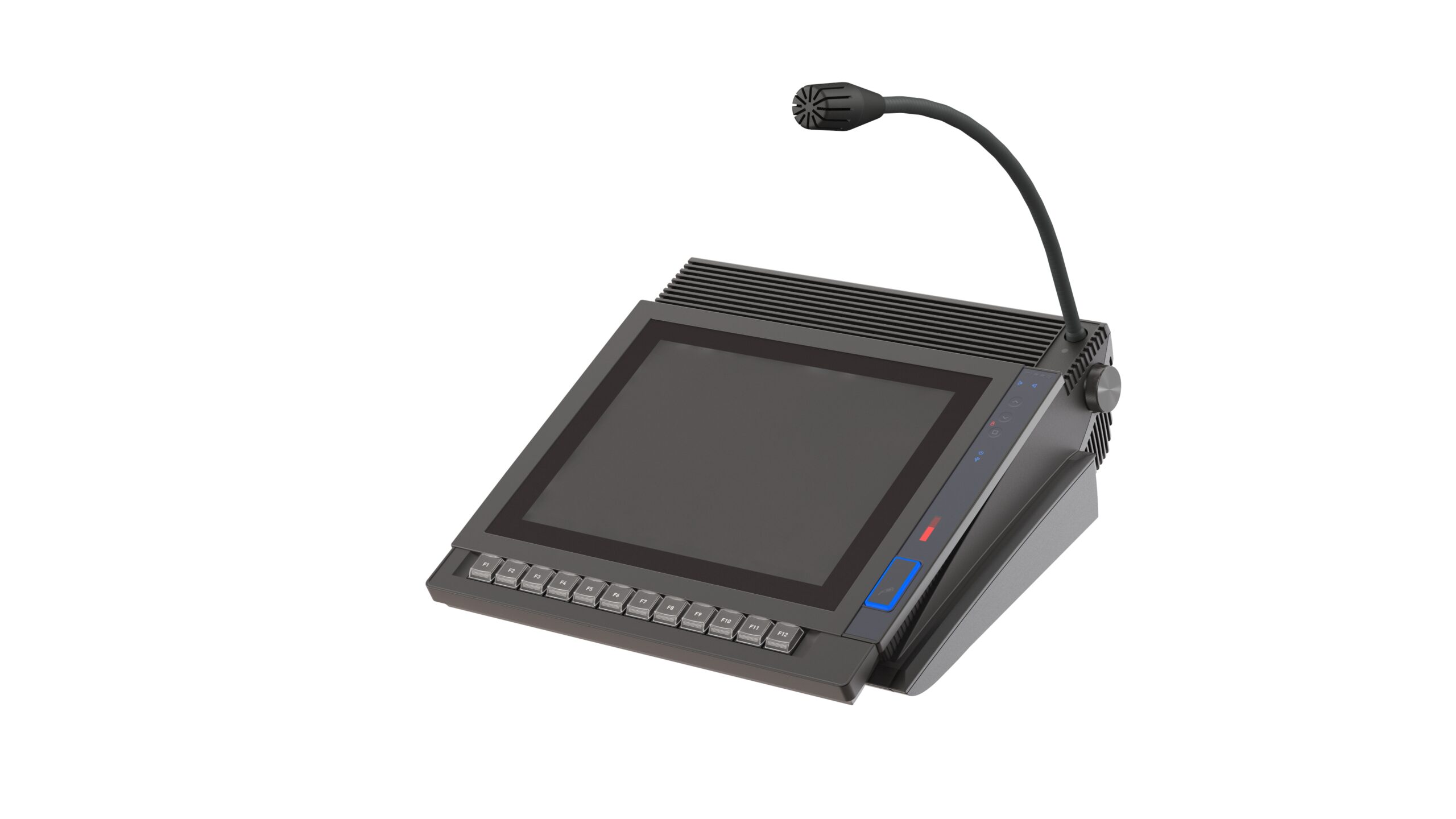

  • 12 additional tactile programmable keys with custom printing
  • Handset
    Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
    – USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
    – Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
  • HID Gamepad Interface
  • Keyboard
    If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE.
  • Inclination Mechanism
    To change the angle of the display, an optional Inclination Mechanism can be mounted.
  • Custom logotype on the top frame
