BeFREE 20 (BF20) - 15.0'' Touchcomputer with Integrated Intercom

Voice Communication Dispatching Device

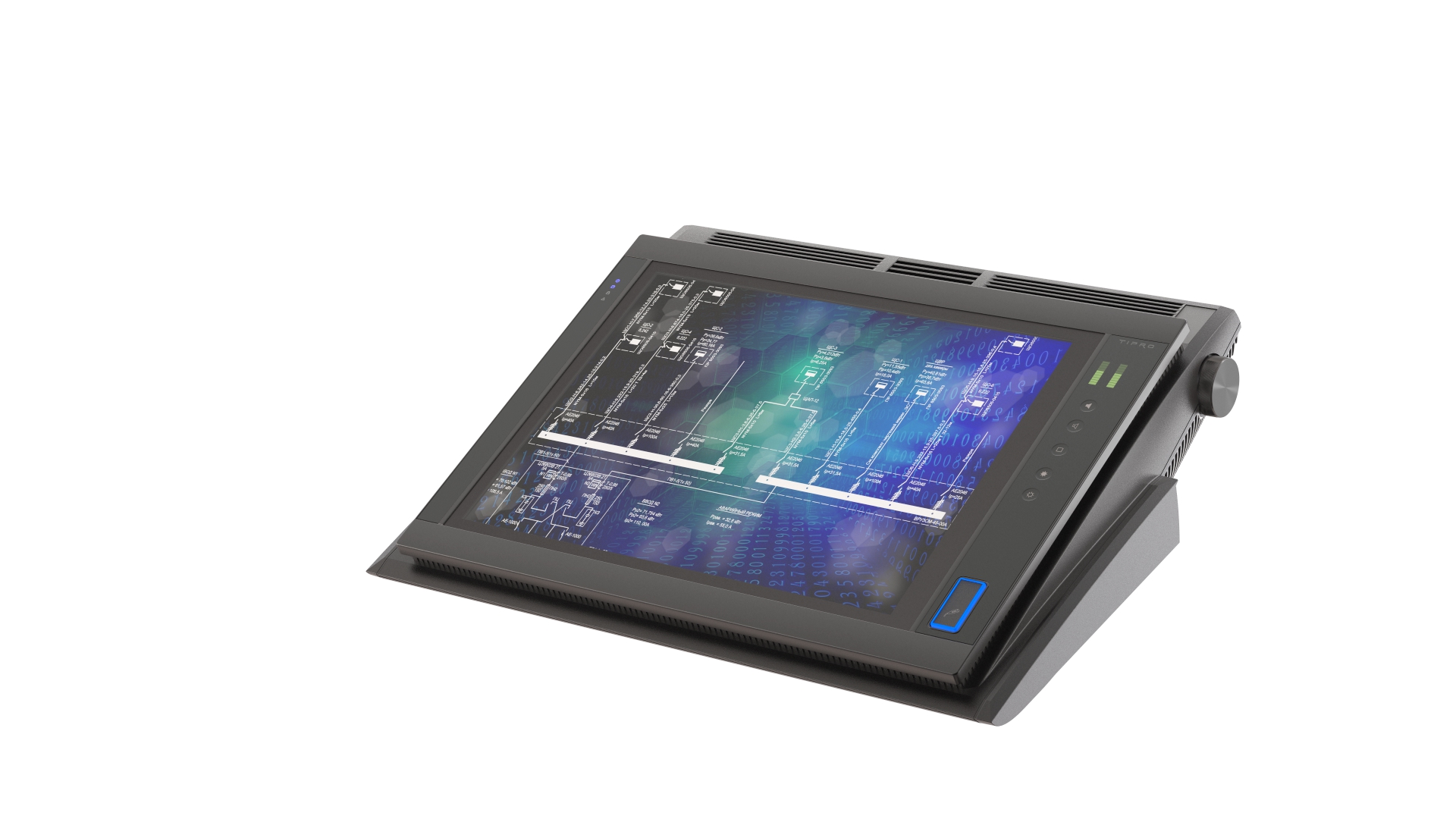

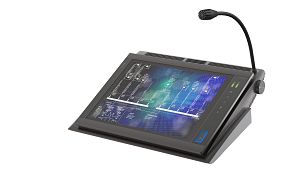

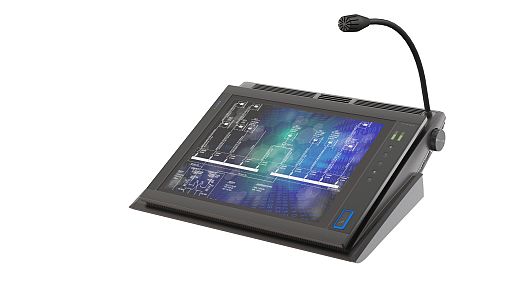

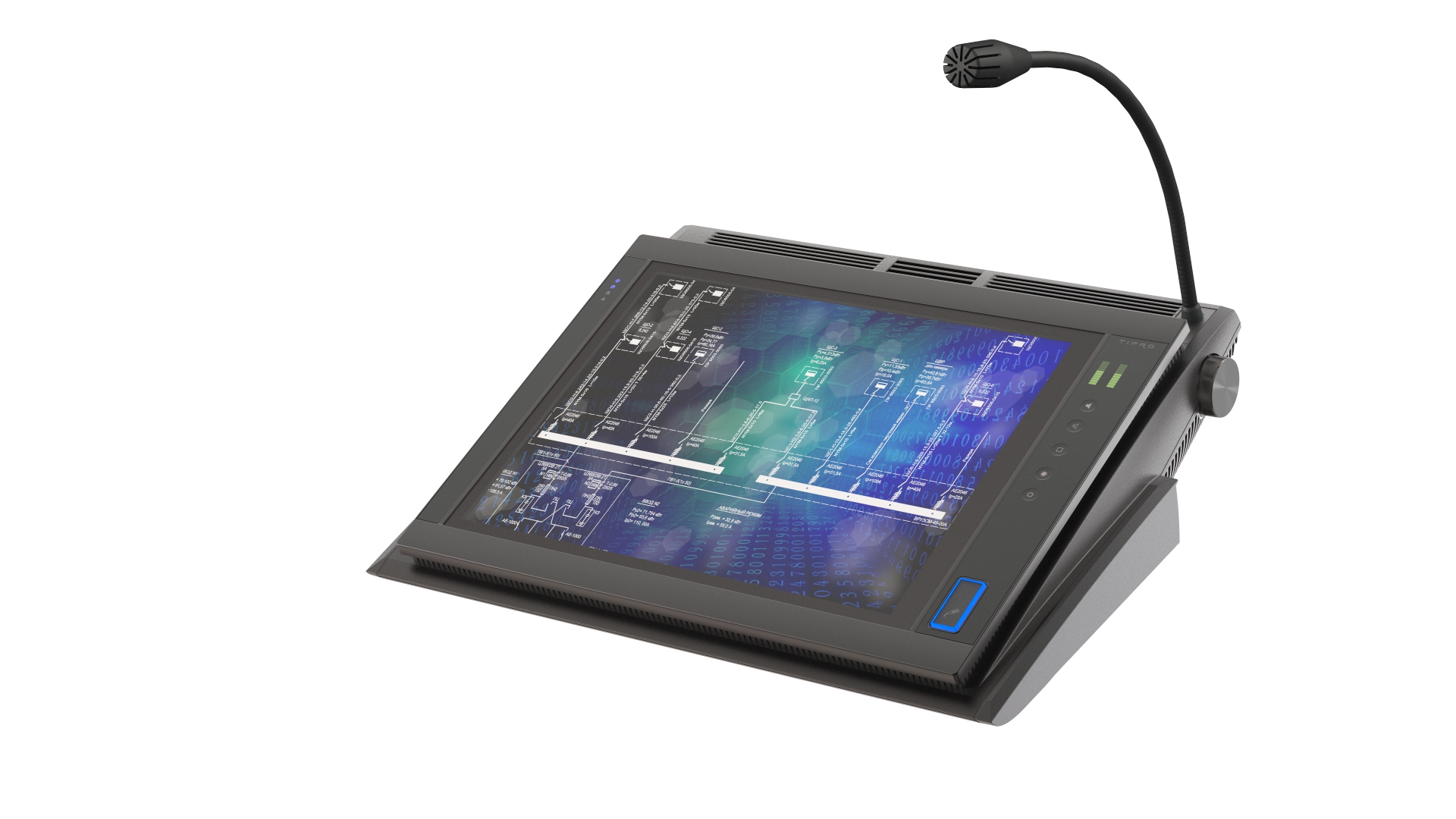

The BeFREE 20 (BF 20) is a member of the modular FREE (also referred to as FREE/FREE+/BeFREE) product family, integrating a 15.0” touchmonitor, a computer and an intercom device. It is compatible and combinable with all existing FREE modules. The touchmonitor comprises a high-brightness, ultra-wide viewing angle TFT LCD and 5-wire resistive touchscreen. The computer is based on a main-board with Intel quad-core Celeron processor (J6412) and a solid state disk. Thanks to low-power components and the corresponding electronic and thermal design the BeFREE 20 is completely silent and without moving parts.

  • Ergonomic integration of a fanless computer, touchscreen and microphone and speakers
  • 15.0” TFT LCD with XGA resolution (1024 x 768)
  • Modular – combinable with other modules of the FREE family into multifunctional terminals
  • Low-profile horizontal design
  • Silent and reliable – no moving parts, industrial grade components, Ethernet redundancy, redundant internal audio and controller interfaces
  • Extensive connectivity (LAN, USB, COM, external display, digital inputs, analog audio)
  • Cable management – hidden and secured, but accessible
  • Built-in Tipro Controller
  • Stereo loudspeakers (5W each) with two separate volume control encoders
  • Goose-neck microphone with illuminated PTT key

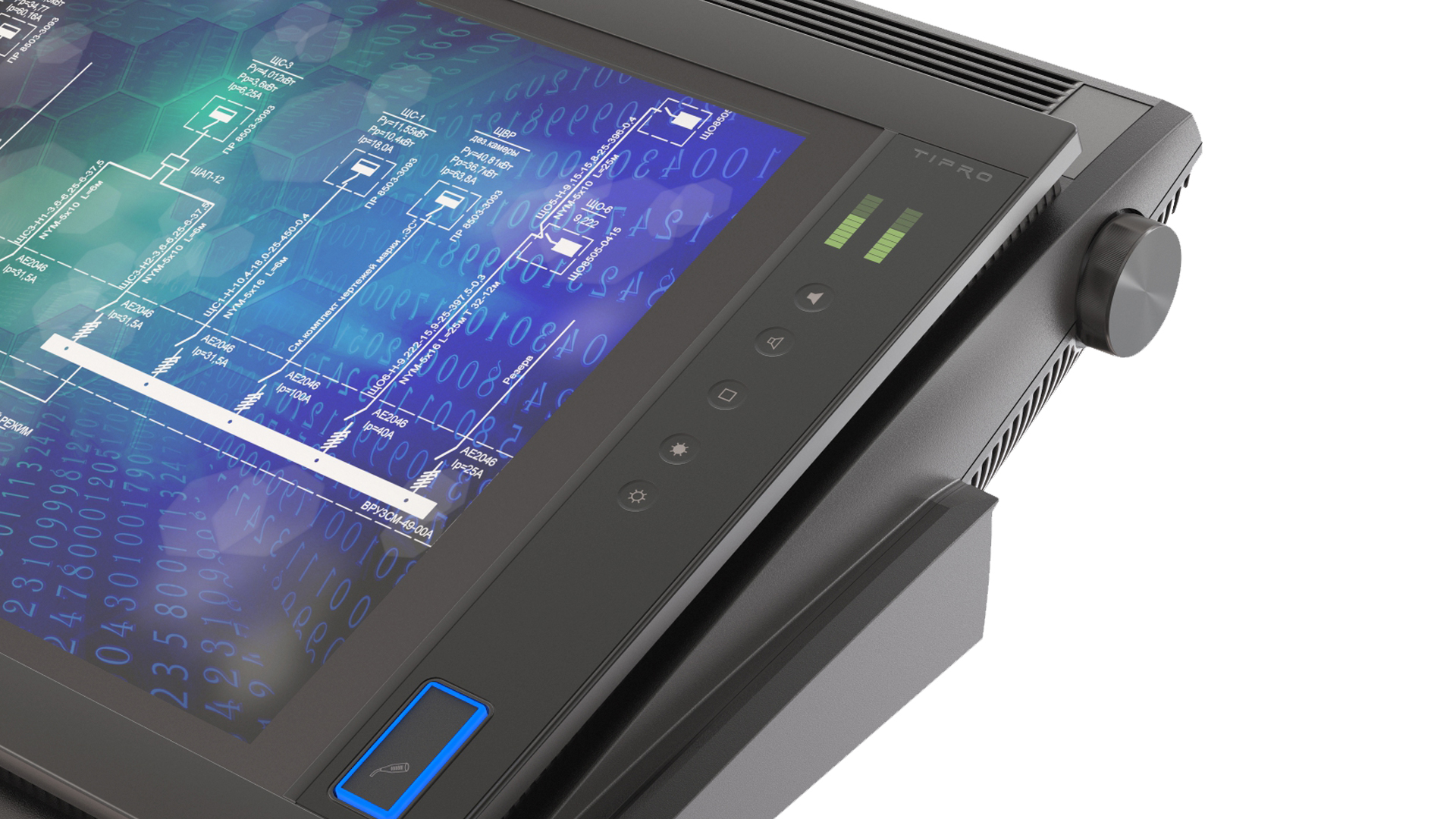

  • Dual three-colour bar-graph display
  • Five mechanical keys for brightness control, volume adjustments and other functions
  • Several LED indicators (power, SSD, microphone, touchscreen …)
  • Optional Inclination Mechanism (VESA 75)
  • External connections to the analogue sound card of integrated computer (Line-In, Line-Out, Mic-In)
  • External connections to the internal Intercom amplifiers (Speaker-In, Mic-Out)
  • Operator/Dispatcher terminals/consoles for command and control centres in:
    • Transport and traffic control (railways, air traffic …)
    • Public safety (police, fire brigades, ambulance …)
    • Utilities (electricity, gas …)
    • Building/facility management systems (airports, banks, industrial plants …)
  • Trading and banking consoles
  • Multifunctional control panels

Computer

  • Intel Quad-Core 64-bit J6412 processor (SoC) with 8 GB RAM (optional 16 GB RAM)
  • Solid-State Disk 256 GB
  • Operating System: Windows, Linux supported. Android possible-limited support. Supplied without operating system.

Display

  • Industrial grade 15.0” high-brightness TFT LCD with XGA (1024 x 768) resolution

Touchscreen

  • ELO 5-wire resistive touchscreen

Intercom

  • Stereo loudspeakers (5W each) with two separate volume control encoders
  • Goose-neck microphone with illuminated PTT key
  • Dual USB audio device
  • HID telephony interface supported
  • Connected to the internal sound card (analogue interface)
  • Up to eight listening (output) and up to four recording (input) channels
  • Optional echo-canceller with a digital signal processor

Modular & Programmable

  • Can be combined with other modules from FREE family, e.g. Handset, keyboard
  • Keys can be programmed as keyboard emulation, HID Telephony events
  • Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
  • All settings stored in hardware, configuration software: ChangeMe
  • Hardware Echo Cancellation
    For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.
  • Handset

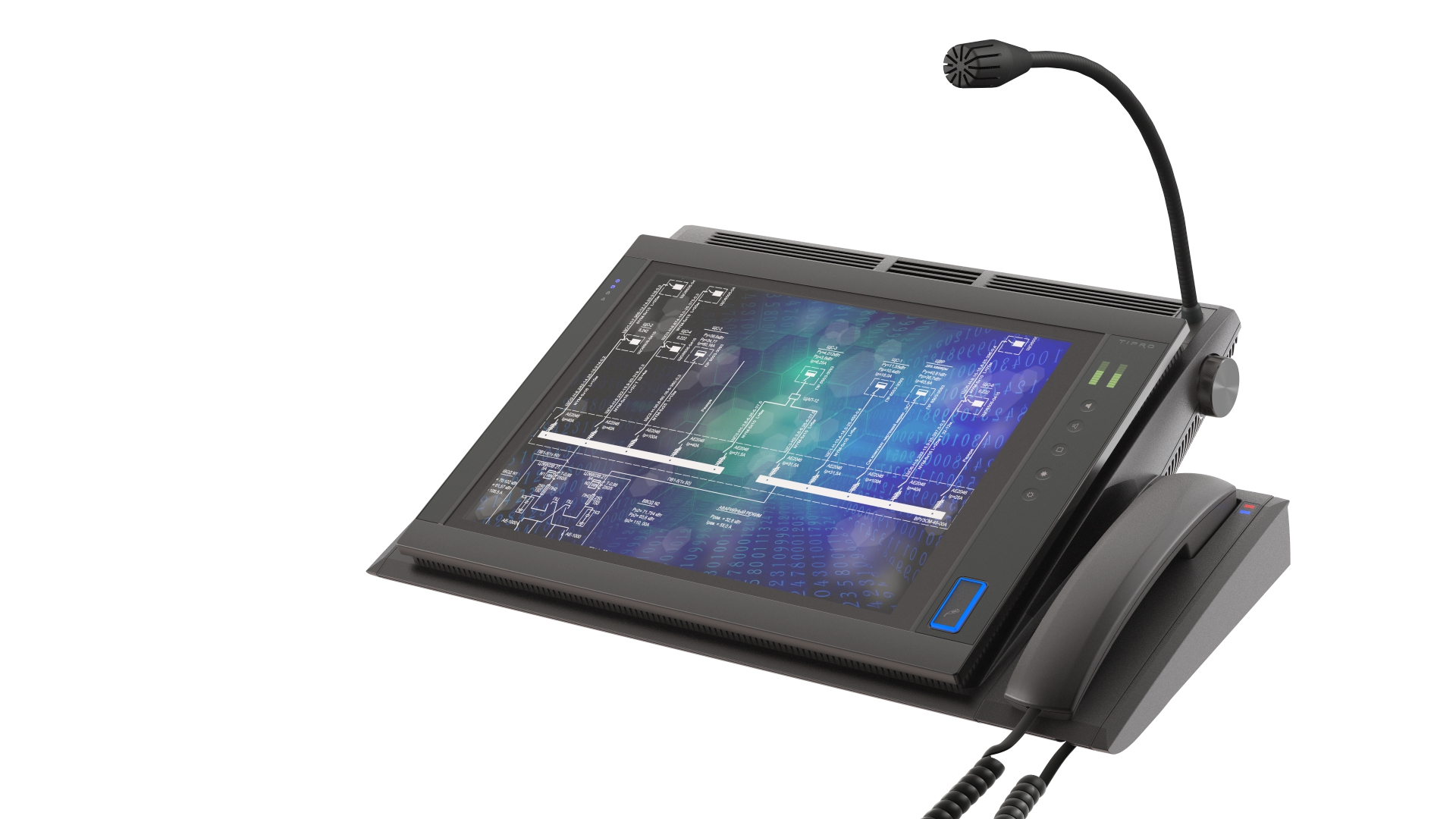

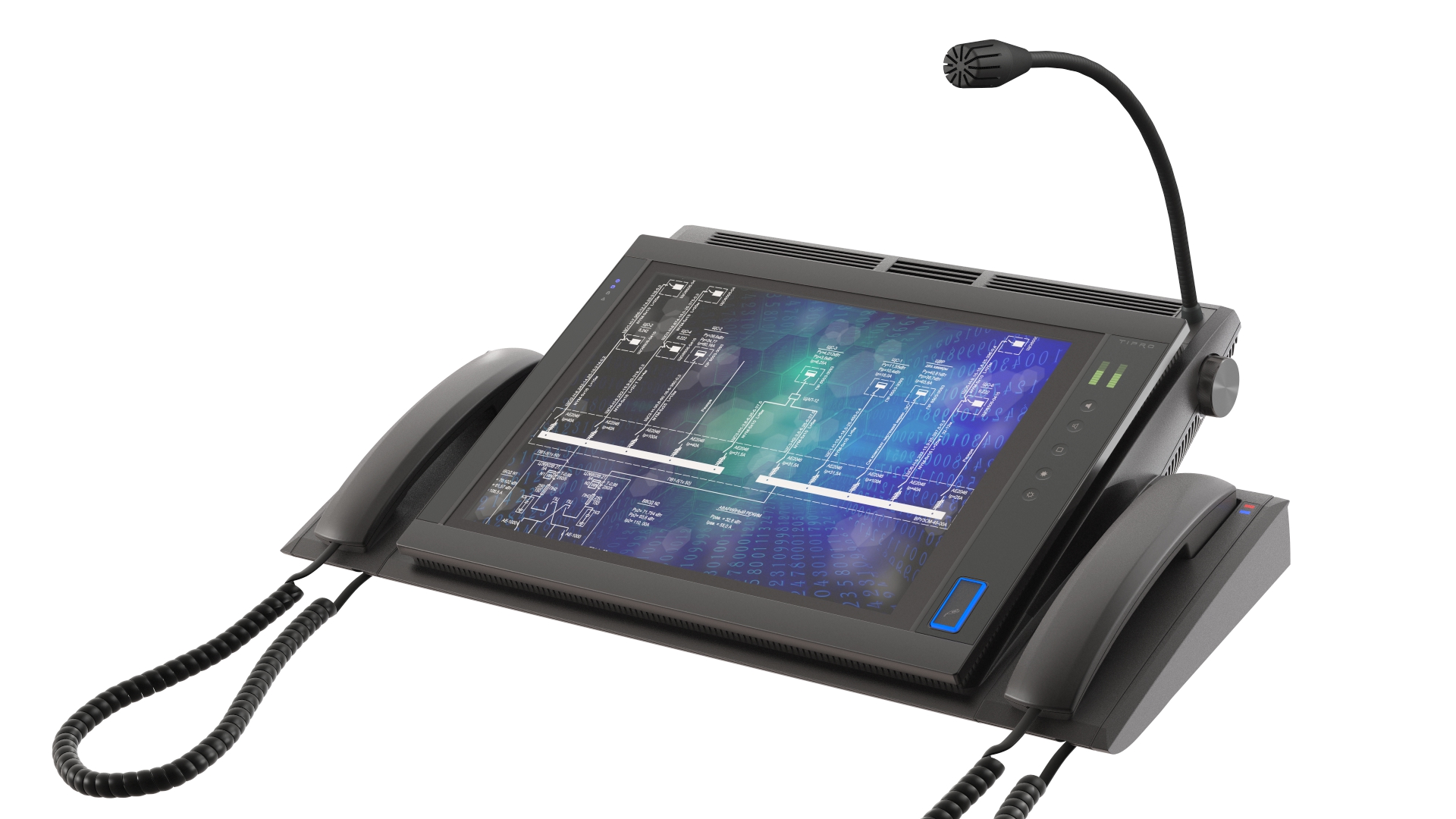

    Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
    – USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
    – Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
  • Keyboard
    If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE
  • Inclination Mechanism
    To change the angle of the display, an optional Inclination Mechanism can be mounted.
